Understanding Electrical Polarity

1. What Exactly IS Polarity, Anyway?

Okay, so you've probably heard the term "polarity" thrown around, especially if you're dealing with anything electrical. But what is it, really? Think of it like a one-way street for electricity. It defines the direction of current flow in a circuit. We're talking about positive (+) and negative (-) terminals. Get them mixed up, and things can go well, let's just say less than ideal.

Imagine trying to force water to flow uphill — thats what happens when you reverse polarity. The device either won't work, might get damaged, or in some cases, could even become a safety hazard. So, understanding polarity is pretty crucial for any DIY electrical project or even just replacing batteries correctly.

Its not rocket science, but it does require a bit of attention. Most things are clearly marked, but sometimes those tiny little + and - symbols can be easy to miss, especially after you've had your third cup of coffee. But trust me, taking that extra second to double-check can save you a whole lot of headache (and potentially some fried electronics) later on.

So, whether you're wiring up a new speaker, installing a car stereo, or just popping batteries into your TV remote, keep polarity in mind. It's the silent guardian of your electrical gadgets, making sure everything runs smoothly and safely. Neglecting it? Well, you might end up with a smoke show, and not the good kind.

Polaritycorrecting Circuit Protects Batterypowered Devices EDN

Identifying Incorrect Polarity

2. How Do You Know Something's Wrong?

Alright, so you've plugged something in, and it's... not working. Or maybe it's making a weird noise. Or perhaps there's a faint smell of burnt toast emanating from your electronics. These could be signs that you've got the polarity wrong. Identifying incorrect polarity early can prevent serious damage, so its a skill worth developing.

One of the most obvious signs is that the device simply won't turn on. It's like trying to start your car with an empty fuel tank — nothing's going to happen. Another symptom can be erratic behavior. Maybe the device turns on, but functions are reversed, or it glitches out unexpectedly. This is a big red flag that something's not quite right.

Sometimes, the damage isn't immediately apparent. The device might seem to work, but reversed polarity could be causing it to overheat or putting undue stress on its components. Over time, this can lead to premature failure. It's like constantly running your car in the redline — you might get away with it for a little while, but eventually, something's going to blow.

And of course, there's the ultimate sign: smoke. If you see smoke, smell burning, or hear sizzling, unplug the device immediately! This is a clear indication that something has gone horribly wrong, and continuing to use the device could be dangerous. Safety first, always! It's much easier (and cheaper) to correct the polarity than to replace a fried circuit board.

How To Calculate Polarity Of A Bond

Methods to Correct Polarity

3. Okay, How Do We Fix This Mess?

So, you've identified the problem: incorrect polarity. Now what? Don't panic! Correcting polarity is often a straightforward process. The specific method will depend on the type of device and the wiring involved, but here are some common approaches. The important thing is to take your time and double-check everything before powering anything back on.

If you're dealing with batteries, the solution is usually as simple as flipping them around. Make sure the positive (+) end of the battery is aligned with the positive terminal in the device, and the negative (-) end with the negative terminal. Most battery compartments have clear markings, but it never hurts to double-check. It's amazing how many problems can be solved by simply paying attention to those little symbols.

For wired connections, the process might be a bit more involved. If you're working with speaker wire, for example, check the markings on the wire itself. Typically, one wire will have a stripe or some other identifier to indicate positive. Make sure this wire is connected to the positive terminal on both the amplifier and the speaker. If you're unsure, consult the device's manual or a wiring diagram.

In some cases, you might need to rewire the connection entirely. This is more common with electrical outlets or light fixtures. Before doing any rewiring, always turn off the power at the breaker box! Use a voltage tester to confirm that the circuit is de-energized. Then, carefully disconnect the wires and reconnect them according to the correct polarity, which is usually indicated by color coding (black for hot, white for neutral, green for ground). If you're not comfortable working with electrical wiring, it's always best to call a qualified electrician.

What Is Reversed Polarity? And It Dangerous?

Tools for Checking and Correcting Polarity

4. Your Polarity Correction Arsenal

Having the right tools on hand makes checking and correcting polarity much easier and safer. You don't need a fancy laboratory setup, but a few basic tools can be invaluable. Think of them as your polarity correction superheroes, ready to swoop in and save the day. Here are some essential tools to have in your electrical toolkit.

A multimeter is a must-have for any electrical work. It can be used to measure voltage, current, and resistance, and it also has a continuity testing function, which is helpful for checking connections. To check polarity with a multimeter, set it to DC voltage mode and connect the probes to the circuit. A positive reading indicates correct polarity, while a negative reading means the polarity is reversed.

A voltage tester is another useful tool for verifying the presence of voltage in a circuit. It's especially handy for confirming that a circuit is de-energized before you start working on it. Some voltage testers also indicate polarity. These testers are relatively inexpensive and can save you from nasty shocks (literally).

Wire strippers are essential for preparing wires for connection. They allow you to remove the insulation without damaging the wire itself. Use the correct gauge setting on the wire stripper to ensure a clean, secure connection. Don't try to use your teeth or a knife — you'll just end up with a mess (and possibly a trip to the dentist).

Finally, a good set of screwdrivers is crucial for tightening and loosening screws on electrical connections. Make sure you have a variety of sizes and types (Phillips head and flathead) to handle different situations. Insulated screwdrivers are recommended for added safety. With these tools in your arsenal, you'll be well-equipped to tackle most polarity correction challenges.

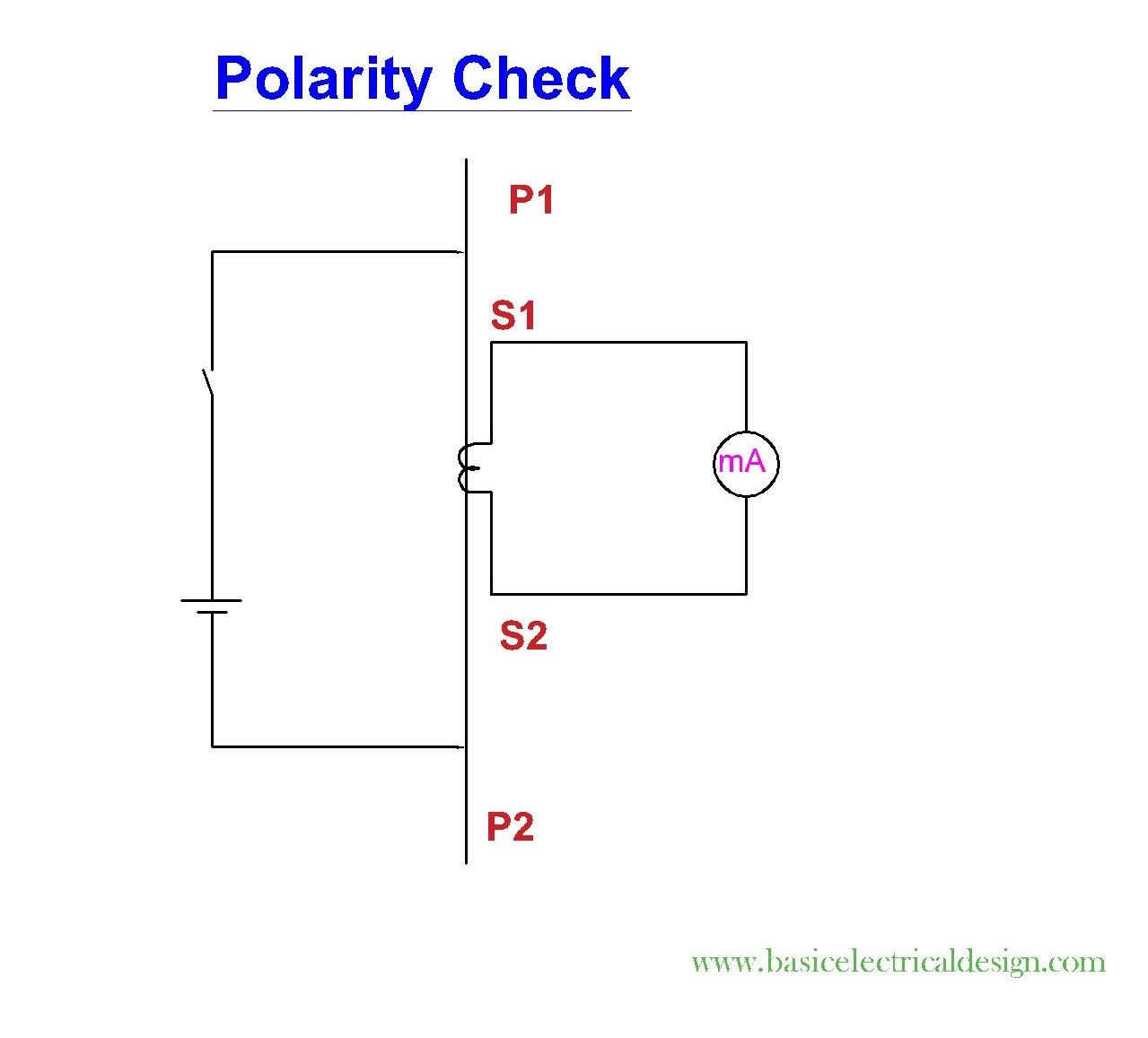

CT Polarity Check Basic Electrical Design

Preventing Polarity Problems

5. Avoid The Issue Before It Starts!

The best way to deal with polarity problems is to prevent them from happening in the first place. A little bit of forethought and careful planning can save you a lot of time and frustration down the road. Think of it as practicing good electrical hygiene — it keeps your circuits healthy and happy.

Before connecting anything, always double-check the polarity markings. Look for the + and - symbols on batteries, devices, and wires. If the markings are unclear or missing, consult the device's manual or a wiring diagram. It's better to be safe than sorry. A few seconds of checking can prevent hours of troubleshooting.

When working with wires, use color coding to your advantage. In most electrical systems, black wires are hot, white wires are neutral, and green wires are ground. Use these colors consistently to avoid confusion. If you're working with a non-standard wiring system, label the wires clearly before disconnecting them.

If you're unsure about any aspect of the wiring, don't hesitate to ask for help. Consult a qualified electrician or a knowledgeable friend. It's always better to seek expert advice than to risk damaging your equipment or endangering yourself. Remember, electricity is not something to be trifled with. A little caution and a little knowledge can go a long way in preventing polarity problems.

Connector How To Tell Polarity Expected Of A DC Barrel Jack

FAQ

6. Your Questions Answered!

Still have questions about correcting polarity? No worries! Here are some frequently asked questions to help clear things up.

Q: What happens if I reverse the polarity on a DC motor?

A: If you reverse the polarity on a DC motor, it will simply run in the opposite direction. This is usually not harmful, but it might not be what you intended.

Q: Can reversed polarity damage a battery?

A: Yes, reversed polarity can damage a battery, especially rechargeable batteries. It can cause them to overheat, leak, or even explode. Always make sure to install batteries with the correct polarity.

Q: Is it possible to correct polarity on an AC circuit?

A: While AC circuits don't technically have fixed polarity like DC circuits, incorrect wiring can still cause problems. For example, if the hot and neutral wires are reversed in an outlet, it can create a shock hazard. It's important to ensure that AC circuits are wired correctly according to local electrical codes.

Q: My device has no polarity markings. What do I do?

A: If a device has no clear polarity markings, consult the device's manual or a wiring diagram. If you can't find any information, you can try using a multimeter to determine the polarity. Set the multimeter to DC voltage mode and connect the probes to the terminals. The terminal with the positive reading is the positive terminal.
